Maximum Solubility Determination

Maximum Solubility Determination is a critical physicochemical test to quantify the saturation concentration of a drug substance in a specified solvent system under defined conditions. This parameter is essential for formulation development, bioavailability prediction, and regulatory compliance.

Maximum Solubility

Maximum solubility refers to the highest concentration of a solute (e.g., an active pharmaceutical ingredient, API) that can dissolve in a specific solvent system under equilibrium conditions at a defined temperature, pH, and pressure. It represents the thermodynamic limit at which the solute-solvent interactions stabilize the dissolved phase, and any additional solute will remain undissolved as a precipitate. In pharmaceutical sciences, this parameter is foundational for:

Formulation Design: Selecting solvents, co-solvents, or surfactants to enhance drug delivery.
Bioavailability Prediction: Poor solubility (<1 mg/mL) often correlates with low oral absorption (BCS Class II/IV).
Stability Assessment: Preventing crystallization in liquid formulations (e.g., injectables, syrups).
Regulatory Compliance: Meeting USP/ICH guidelines for solubility characterization.

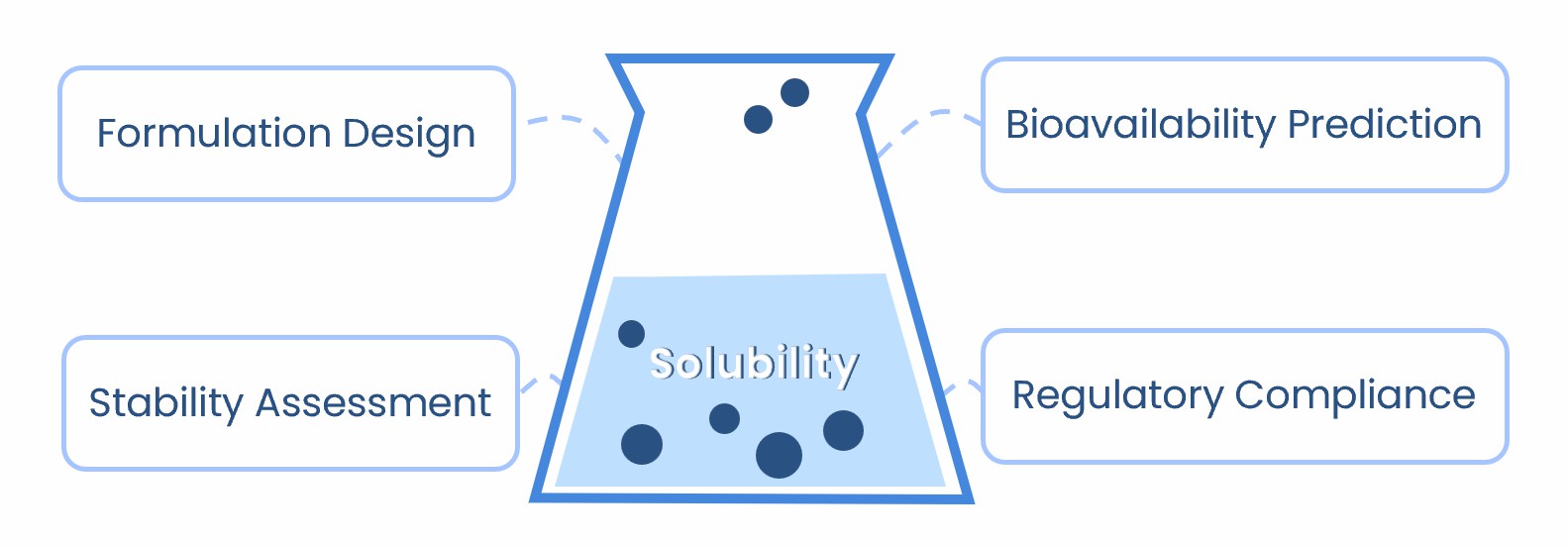

Illustration of the importance of maximum solubility determination. (STEMart Original)

Understanding and optimizing maximum solubility is pivotal in overcoming drug development challenges, particularly for poorly water-soluble molecules, which constitute >70% of pipeline candidates. Modern techniques (e.g., nanomilling, amorphous solid dispersions) aim to push solubility beyond intrinsic limits to achieve therapeutic efficacy.

Methodology

1. Experimental Design

Solvent Systems:
- Aqueous buffers (pH 1.2–7.4, simulating physiological conditions).
- Organic solvents (e.g., ethanol, PEG, propylene glycol).
- Surfactant-containing media (e.g., polysorbate 80, SDS).
Temperature Control:
- Standard: 25°C ± 0.5°C (ambient) or 37°C ± 0.5°C (physiological).
Equilibration Time:
- 24–72 hours with agitation (orbital shaker) to reach equilibrium.

2. USP-Compliant Techniques

Shake-Flask Method (USP <1176>):
- Excess API is added to the solvent.
- Agitated until equilibrium; supernatant filtered (0.45 µm/0.22 µm membrane).
- Quantification via HPLC/UV-Vis spectrophotometry.
Dynamic Light Scattering (DLS):
- Monitors particle size changes to detect undissolved solids.
Isothermal Titration Calorimetry (ITC):
- Measures heat changes during dissolution to determine saturation points.

3. Data Analysis

Solubility Calculation:
- Cmax = Mass of dissolved solute (g) / Volume of solvent (L)
Validation Criteria:
- Repeatability (RSD ≤ 5%).
- Correlation with theoretical solubility (e.g., Henderson-Hasselbalch equation for ionizable compounds).

4. Reporting Deliverables

Comprehensive Report Includes:
- Experimental conditions (solvent, temperature, equilibration time).
- Analytical method validation summary.
- Solubility curve (concentration vs. solvent composition/pH).
- Comparison with pharmacopeial standards (USP/EP).

Regulatory Considerations

USP <1176>: Defines solubility categories (e.g., "freely soluble," "sparingly soluble") and methodology.
ICH Q6A: Requires solubility data for decision trees on dissolution specifications.
FDA Guidance for Industry: Emphasizes biorelevant media (e.g., FaSSIF/FeSSIF) for BCS classification.

Partner With Us

Illustration of the ressons for choosing us. (STEMart Original)

Regulatory Expertise: Full compliance with USP, ICH, and FDA guidelines.
Advanced Technology: State-of-the-art HPLC, DLS, and automated systems.
Custom Solutions: Tailored experimental designs for novel formulations (e.g., lipid-based, nanoemulsions).

For more information on our Maximum Solubility Determination service or to discuss your specific requirements, please contact us today.
