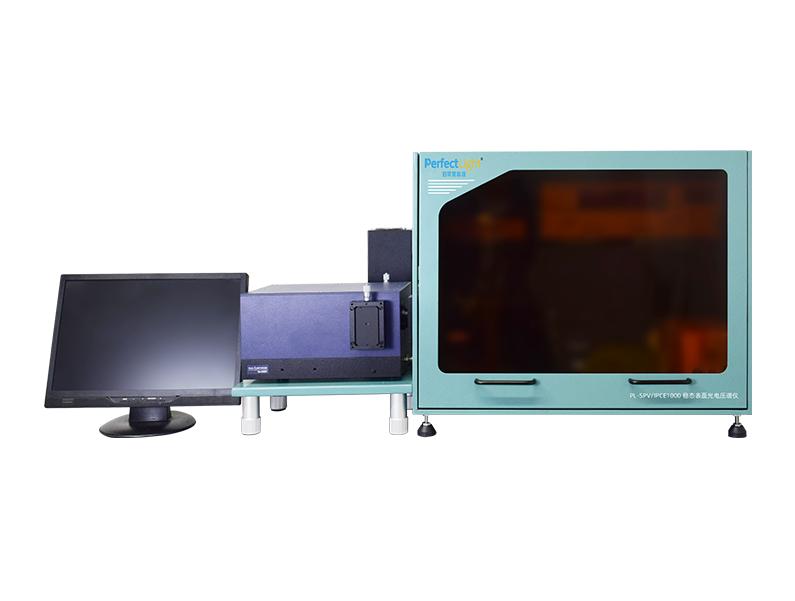

OLED Photoelectric Test System

The optical-electrical characteristic testing system for the OLED device comprises a computer, a single chip microcomputer, a multichannel ADC, a DAC1, a DAC2, an OLED driving and collecting circuit, a voltage reference source and a temperature sensor. By testing the current-voltage characteristics, luminous brightness-voltage characteristics, temperature-current characteristics, luminous efficiency-voltage characteristics, color coordinates and electroluminescence spectrum of OLED devices, the quality of the device's luminous performance and electrical performance can be judged.

Sample Requirements

LAMP (Φ3, Φ5, Φ8, Φ10), Piranha-LED (piranha), HP-LED (1W, 3W, etc. high power), halogen lamp (10W OSRAM, etc.), COB.
TOP&SIDE View SMD TYPE LED (0603, 0805, 3014, 3020, 3528, 5050, 5050M, 5630) and other light source tests.
Energy-saving lamps, incandescent lamps, high-power straight tube fluorescent lamps, circular fluorescent lamps, bulb lamps, downlights, spotlights, ceiling lights, spotlights, LED street lights, panel lights and other indoor and outdoor lighting and decorative lights.

Application

Test parameters: electrical parameters, color parameters and photometric parameters, compatible with basic types of lamps on the market (bulb lamp street lamp, landscape lamp, down lamp, fluorescent lamp, etc.)
