Microwave Resonator

There are two types of microwave resonators: open resonator and shielded resonator, which are mainly used for microwave dielectric dielectric constant and tangential loss testing.

Frequency range: 2.0 Hz-30 GHz

Dielectric constant: 5 - 100

Dielectric loss: 10^-4 x 10^-3

Sample Requirements

• For details, please consult the technical teacher.

Application

• Measurable parameters: S parameter, dielectric constant, dielectric loss, temperature drift coefficient

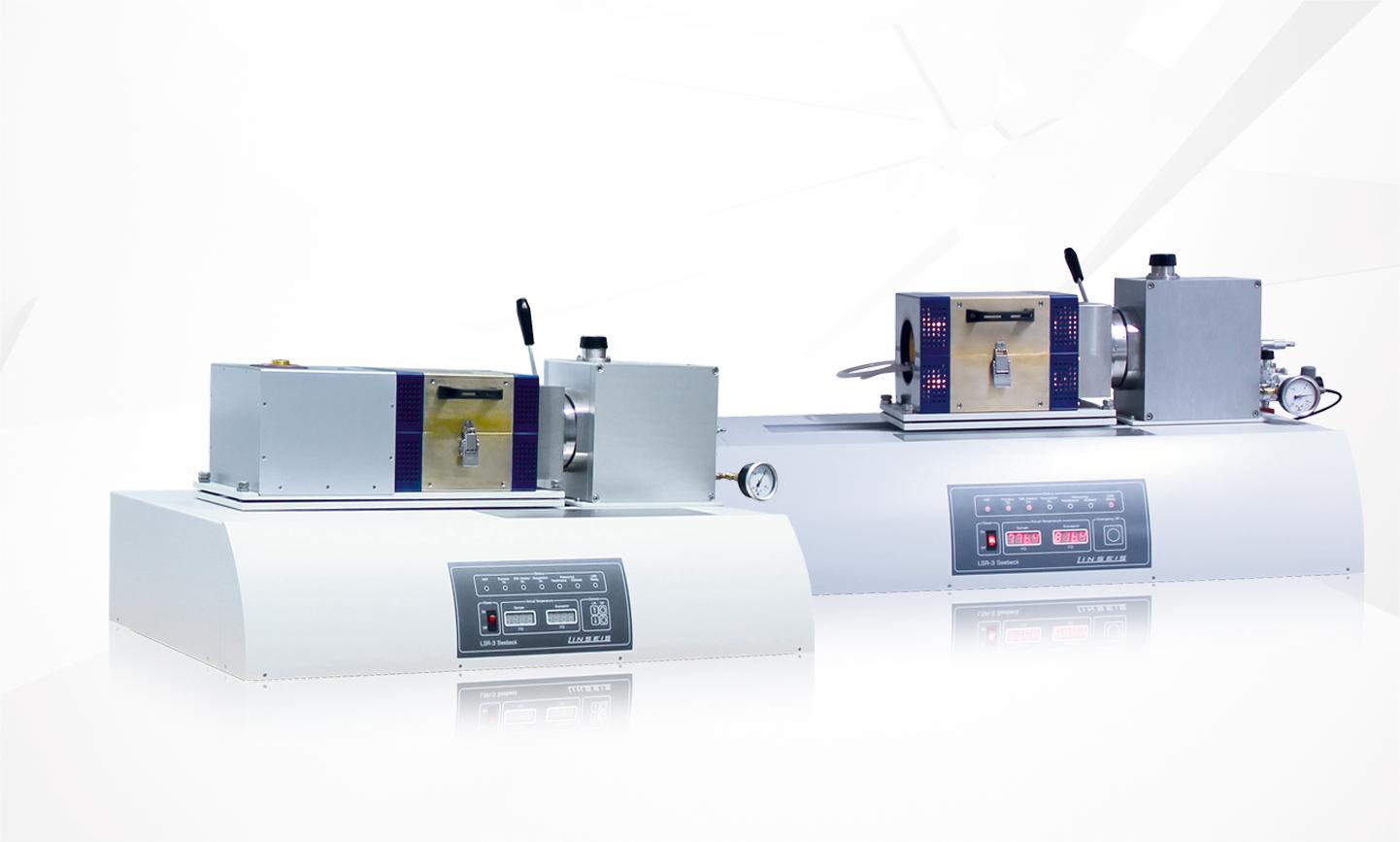

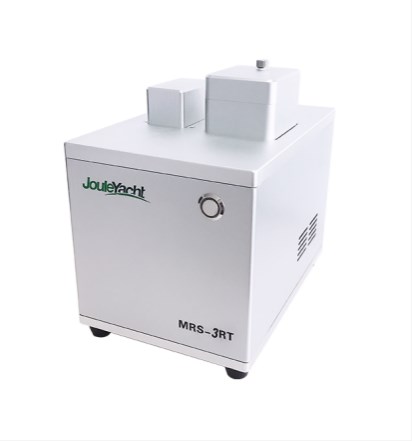

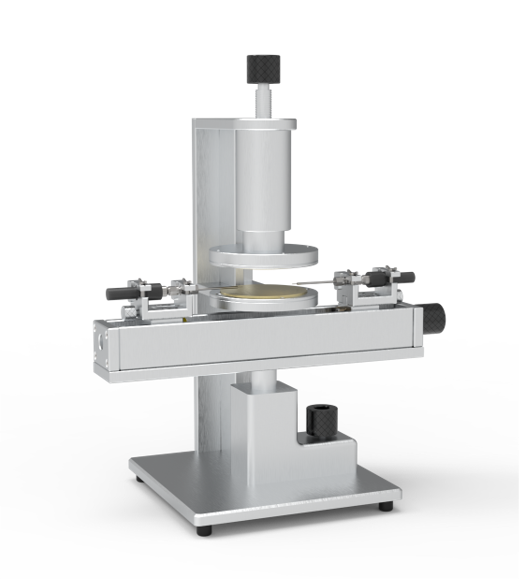

Instrument and Result Display

Recommended Projects

For more information about our microwave resonator testing services, please contact us.
