Impedance Analyzer

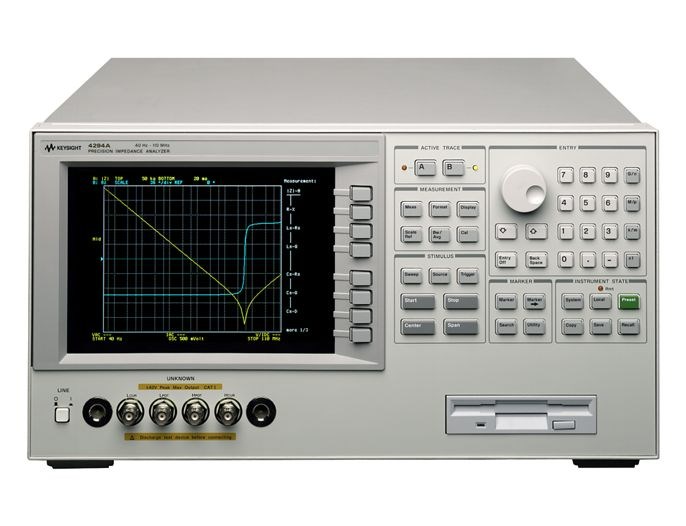

An impedance analyzer is an electronic testing instrument. An impedance analyzer can measure complex resistance as a function of test frequency. Impedance is a very important parameter for characterizing electronic components, electronic circuits and component materials. In addition, impedance analysis can be applied to dielectric materials such as biological tissue, food and geological samples.

Sample Requirements

The sample forms are solid samples such as films and ceramics.
Please communicate for details in advance.

Application

For accurate impedance measurement and analysis on various electronic devices, electronic materials and non-electronic materials
For testing various parameters of components and materials, such as capacitance (C), inductance (L), resistance (R), conductance (G), susceptance (B), reactance (X), dissipation factor (D), quality factor (Q), impedance (Z), Y parameter (Y), phase angle (Ø), etc.
